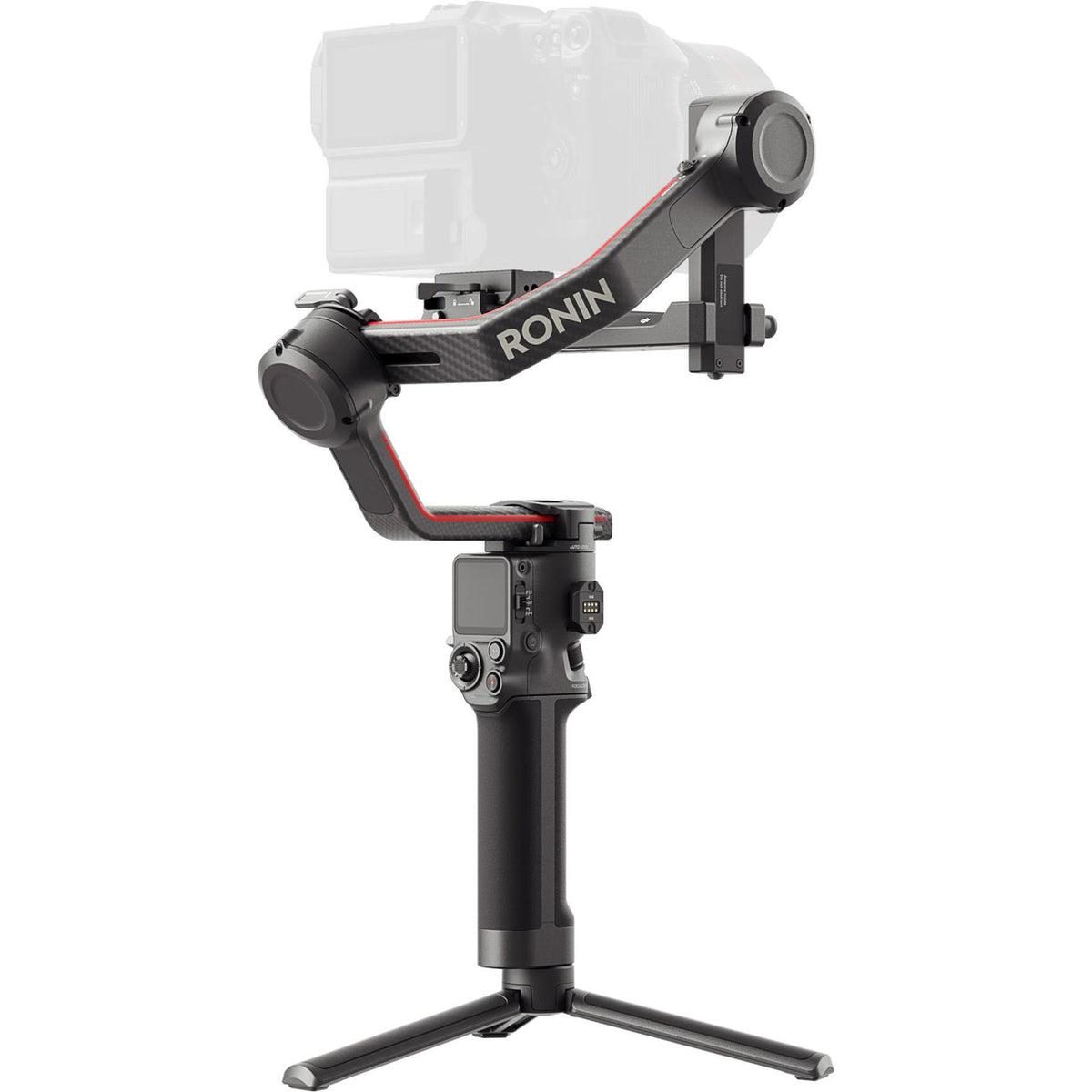

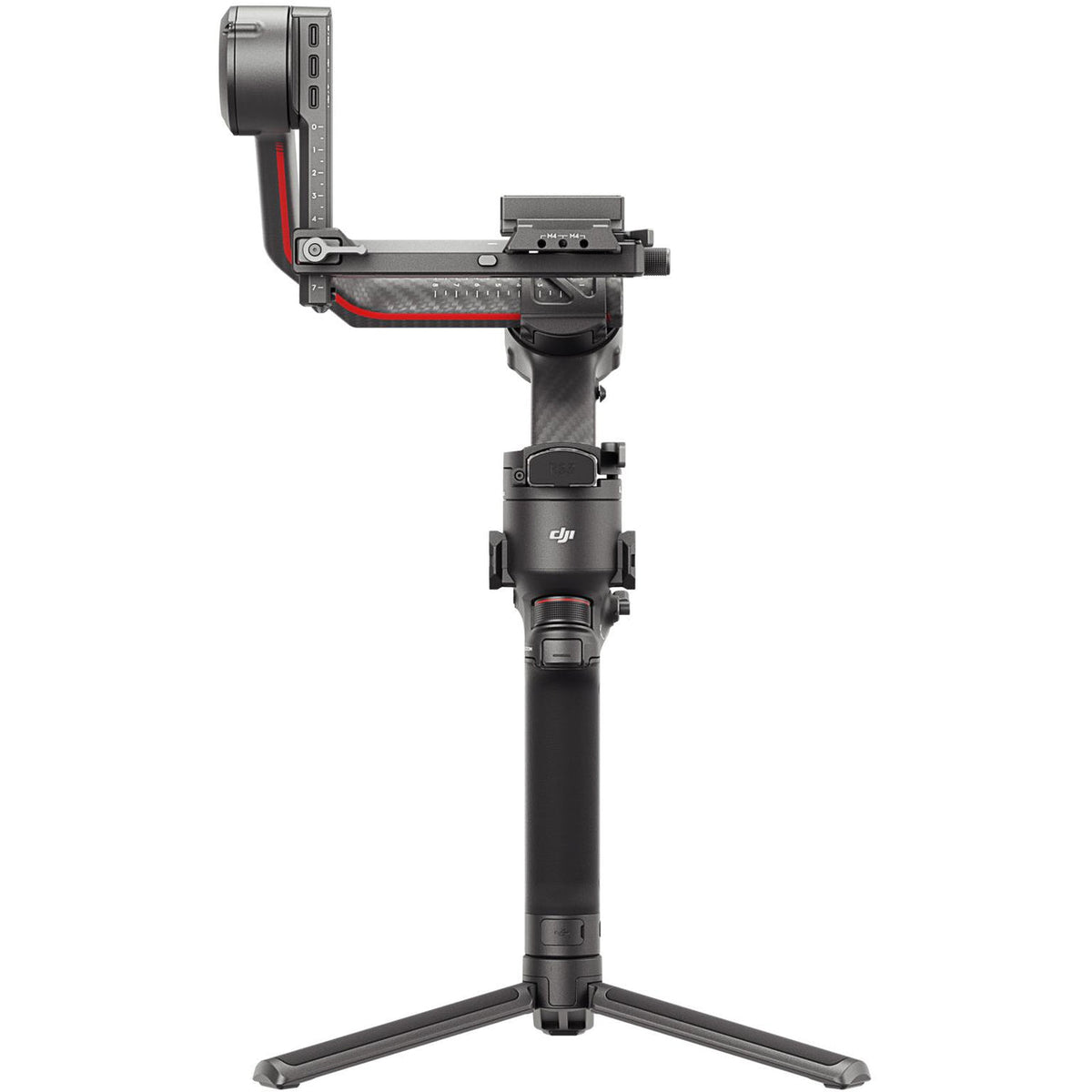

DJI RS 3 Pro Gimbal Stabilizer

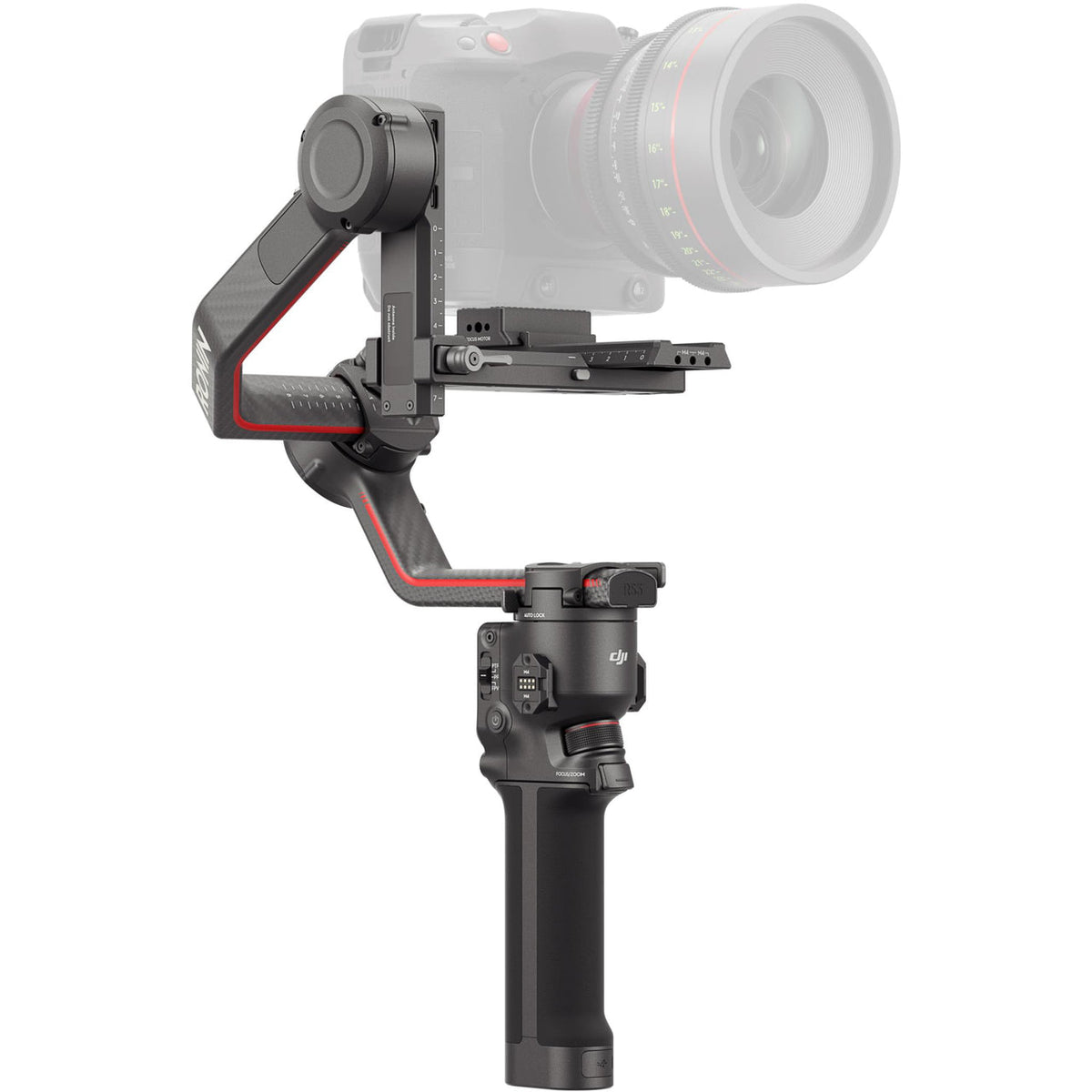

RS 3 Pro uses extended carbon fiber axis arms to allow more balancing space for professional cameras. It perfectly fits cameras like the Sony FX6 or Canon C70 with 24-70mm F2.8 lenses, expanding creative possibilities. The new Extended Lower Quick-Release Plate [1] ensures more stable camera mounting and is convenient for installing lens support for more secure setups. To make the balancing process easier, a fine-tuning knob has been added for the tilt axis to move the camera forward or backward more precisely, even down to the millimeter. With Teflon®-coated components, RS 3 Pro can be balanced with less friction and lower resistance, even when mounting heavy cameras. RS 3 Pro allows you to get started fast to never miss a shot. Simply press and hold the power button and the three axes unlock and expand automatically, allowing you to start shooting within seconds. Press the power button once, and the axes automatically lock and enter sleep mode, making the company move significantly more efficiently. Press and hold the power button and it will fold and lock automatically.
The optimized structural design of RS 3 Pro ensures that its weight remains the same as RS 2 at just 1.5 kg/3.3 lbs (includes gimbal, battery grip, and dual-layered quick-release plates), while its load capacity is a robust 4.5 kg/10 lbs, delivering powerful support in a lightweight body. Equipped with Dual-Mode Bluetooth technology, RS 3 Pro is able to achieve efficient and reliable wireless shutter control. [2] After the initial Bluetooth pairing, you can control video and photo shooting by simply pressing the record button on the stabilizer. A previously paired camera will automatically reconnect, saving you time with every ensuing use. By simply sliding the new Gimbal Mode Switch, you can alternate between Pan follow, Pan and Tilt follow, and FPV modes. The FPV mode selection is also customizable to 3D Roll 360, Portrait, or Custom, allowing you to adjust your equipment and get started fast.
To make focusing easier, Ronin 4D’s LiDAR focusing technology is applied to RS 3 Pro. The new LiDAR Range Finder (RS) can project 43,200 ranging points within a 14-meter distance
It supports both Wide Mode and Spot Mode. In Wide Mode, the range finder automatically detects the subject and follows focus. In Spot Mode, users can manually frame or tap the subject to focus
When using ActiveTrack Pro, you can directly monitor or frame the subject on the RS 3 Pro’s OLED touchscreen
Specifications:
Grip Design: | Single Handgrip (Slanted) |
Load Capacity: | 9.9 lb / 4.5 kg |
Number of Axes: | 3-Axis (Pitch (Tilt), Roll, Yaw (Pan)) |
Rotation Range: |
Mechanical Range Yaw (Pan): 360° Unlimited Pitch (Tilt): 335° (-95 to 240°) Roll: 326° (-112 to 214°) |
Follow Speed: | Pan: 360°/s Tilt: 360°/s Roll: 360°/s |
Camera Control: | On Compatible Models |
Camera Mounting Screw: | 1 x 1/4"-20 Male |
Inputs/Outputs: |
3 x USB-C (Control) Output 1 x USB-C (Power) |
Wireless Frequency: | 2.4 GHz (2.4 - 2.484) |
Wireless Protocol: | Bluetooth 5.0 |
App Compatible: | Yes, Required: Android & iOS App Name: DJI Ronin Functionality: Adjust Settings, Firmware Update, Remote Control, Setup, View Live Feed |
Battery Type: | 1 x Built-In |
Battery Capacity: | 1950 mAh / 30 Wh |
Battery Runtime: | 12 Hours |
Battery Charging Time: | 1.5 Hours |
Battery Chemistry: | Lithium-Ion Polymer (LiPo) |
Voltage: | 15.4 VDC |
Operating Temperature: | -4 to 113°F / -20 to 45°C |
Display Type: | Fixed Touchscreen OLED |
Materials: | Carbon Fiber |
Mounting: | 1 x 1/4"-20 Female 1 x Cold Shoe Mount |
Dimensions: | 16.3 x 8.6 x 7.7" / 415 x 218 x 195 mm 10.9 x 10.6 x 2.7" / 276 x 268 x 68 mm (Folded) |
Weight: | 2.5 lb / 1143 g |
