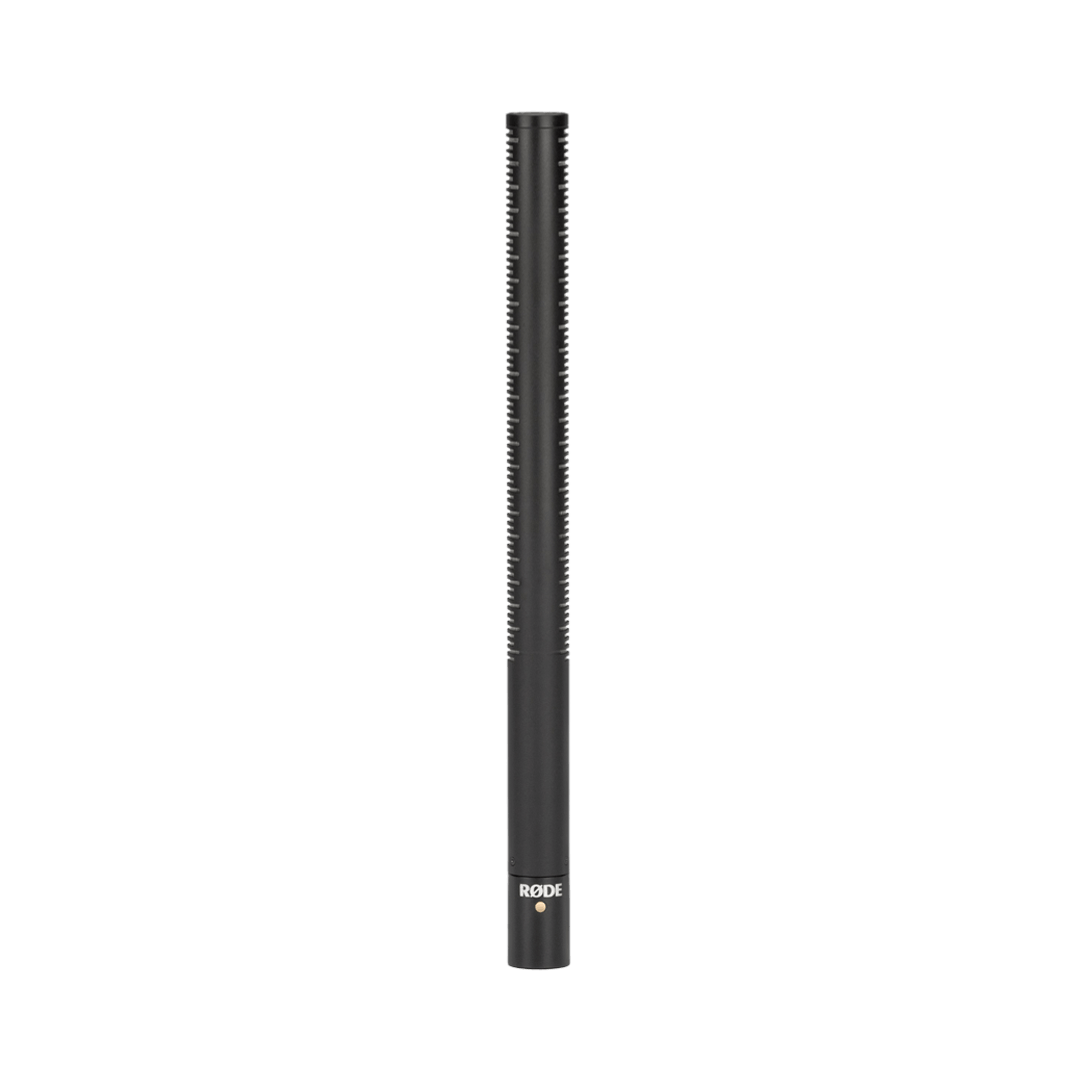

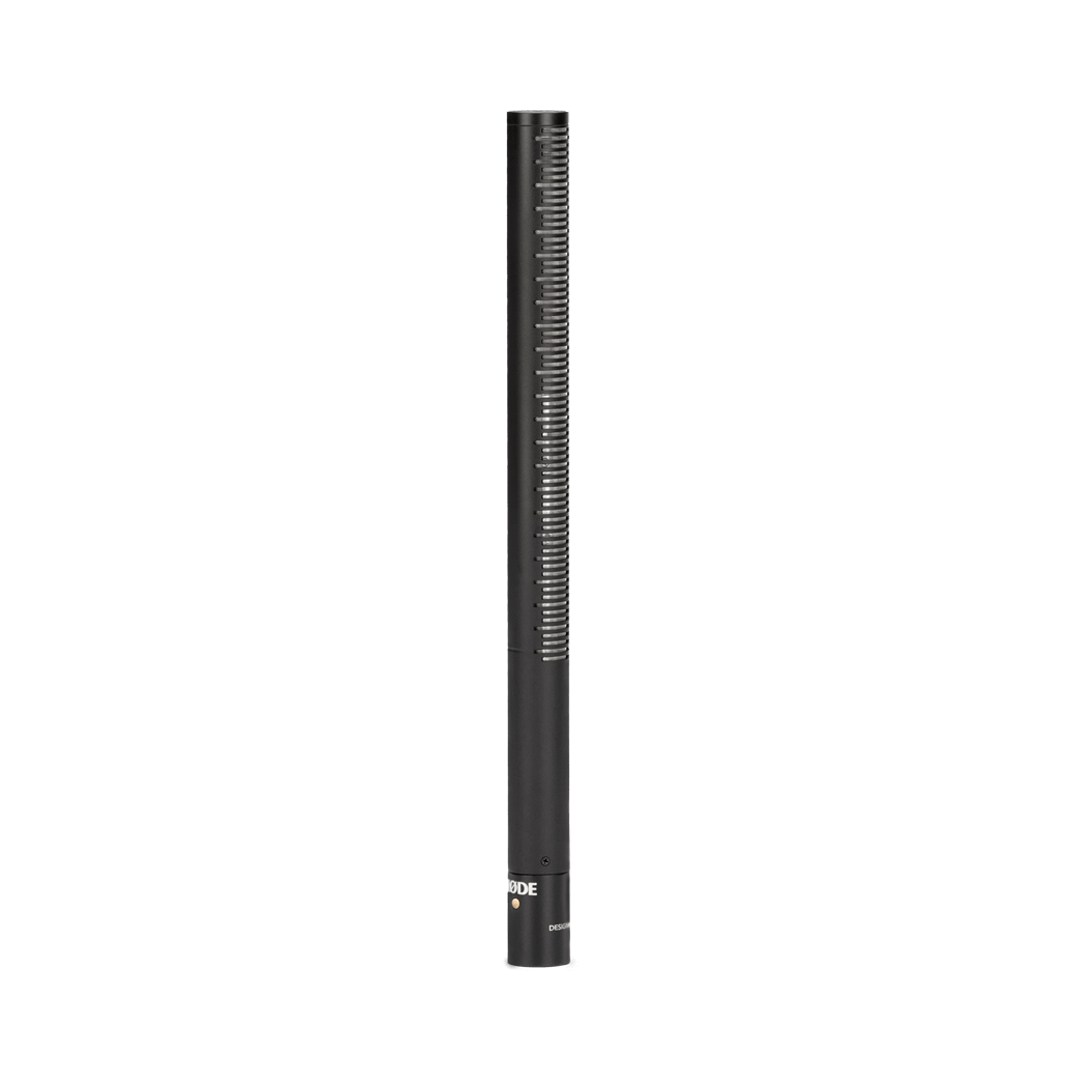

Rode NTG3B Moisture-Resistant Shotgun Microphone
The NTG3 is a broadcast-grade shotgun microphone designed for the most demanding shoots that high-resolution broadcast audio. It features RF-bias technology that yields superior resistance to moisture and condensation, making it suitable for outdoor shoots in adverse conditions. The NTG3 has a rich, warm sound and a tightly controlled polar pattern with exceptional off-axis performance with no coloration. It is also highly regarded for voice-over work, where its natural tone and punch deliver exceptional performance for a wide range of voice types.
Key Features:
- Broadcast-grade RF-bias shotgun microphone
- Highly resistant to moisture and condensation
- Tightly controlled directional pick-up without off-axis coloration
- Available in satin-nickel or matte black finish
Specifications
Microphone
| Form Factor | Stand/Boom Mount |
| Sound Field | Mono |
| Operating Principle | Line Gradient |
| Capsule | Condenser |
| Diaphragm | 0.5" / 12.70 mm |
| Polar Pattern | Supercardioid |
| Orientation | End Address |
| Circuitry | Solid-State |
| Pad | None |
| High-Pass Filter | None |
| Tone Adjustment | None |
| Gain Adjustment | None |
| Indicators | None |
| On-Board Controls | None |
| Windscreen | Foam (Included) |
Performance
| Frequency Range | 40 Hz to 20 kHz |
| Maximum SPL | 130 dB SPL (1 kHz, 1% THD, 1-Kilohm Load) |
| Off-Axis Rejection | 8 dB at 60° 18 dB at 120° 17 dB at 180° |
| Impedance | 25 Ohms |
| Sensitivity | -30 dBV/Pa at 1 kHz |
| Output Level | 8.2 mV (Max) |
| Dynamic Range | 117 dB |
| Signal-to-Noise Ratio | 81 dB A-Weighted |
| Equivalent Noise Level | 13 dB A-Weighted |
| Output Connectors (Analog) | 1 x XLR 3-Pin |
Power
| Operating Voltage | 48 V ± 4 V |
| Operating Current Consumption | 5 mA |
Physical
| Color | Black |
| Mounting | Mic Clip/Stand Adapter (with Included Hardware) |
| Mounting Thread Size | 5/8"-27 Female (3/8"-16 Female with Included Adapter) |

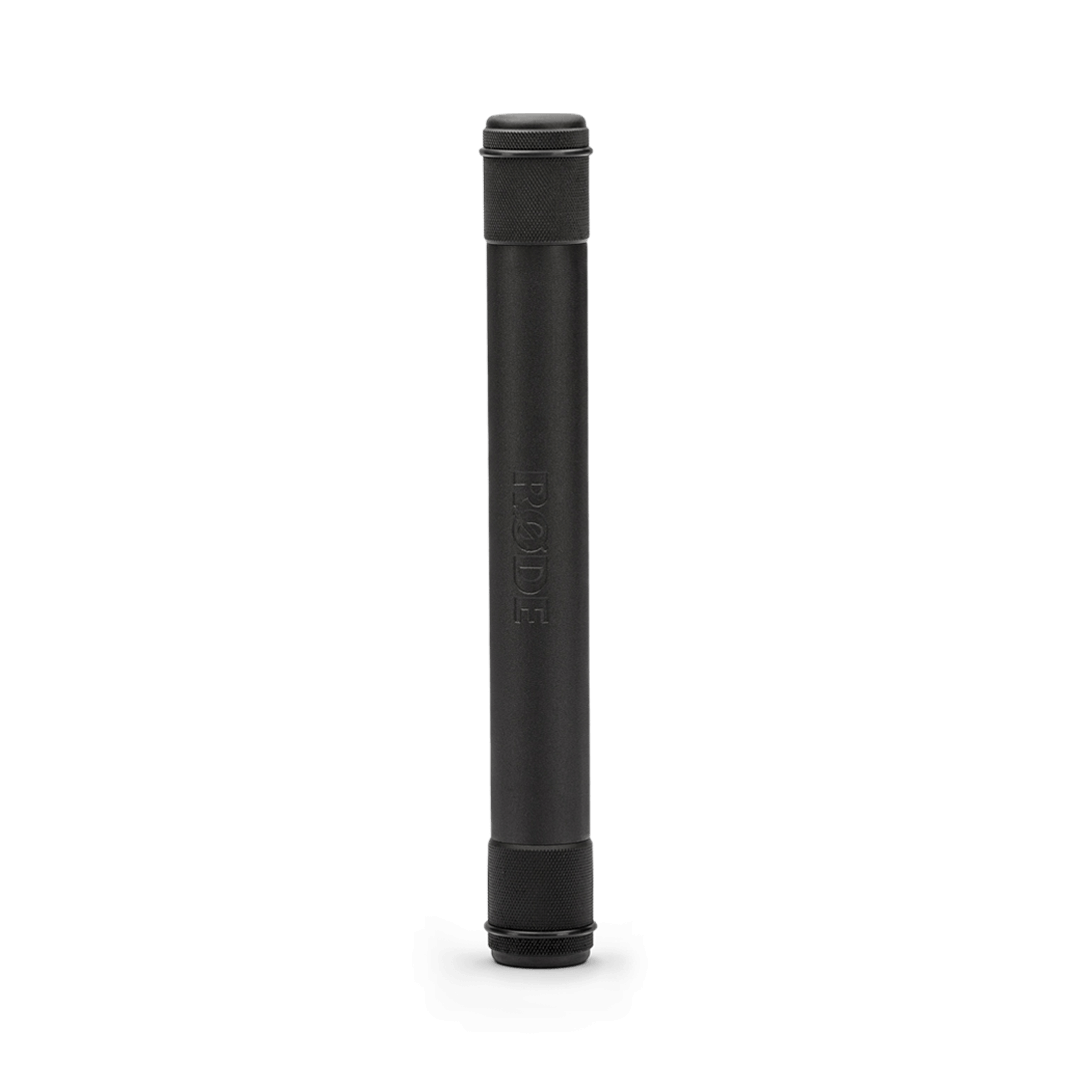

| Included Case | Transport Tube, Zipper Pouch |
| Construction Material | Brass |
| Dimensions | ø: 0.75 x L: 10.04" / ø: 19 x L: 255 mm |
| Weight | 5.75 oz / 163 g (Microphone) |
Packaging Info
| Package Weight | 1.8 lb |
| Box Dimensions (LxWxH) | 13.1 x 6.7 x 3.15" |
