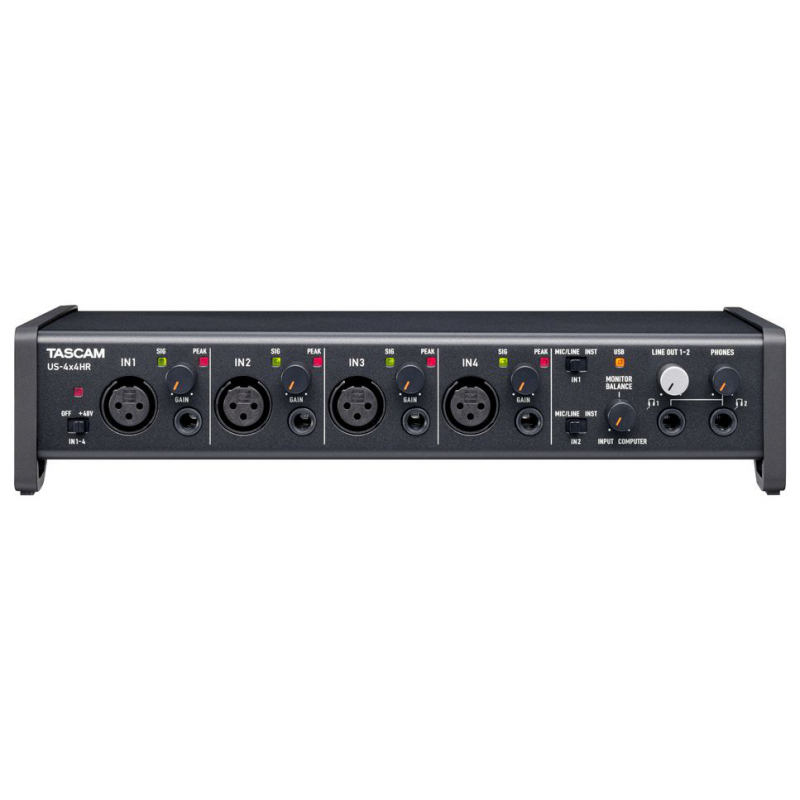

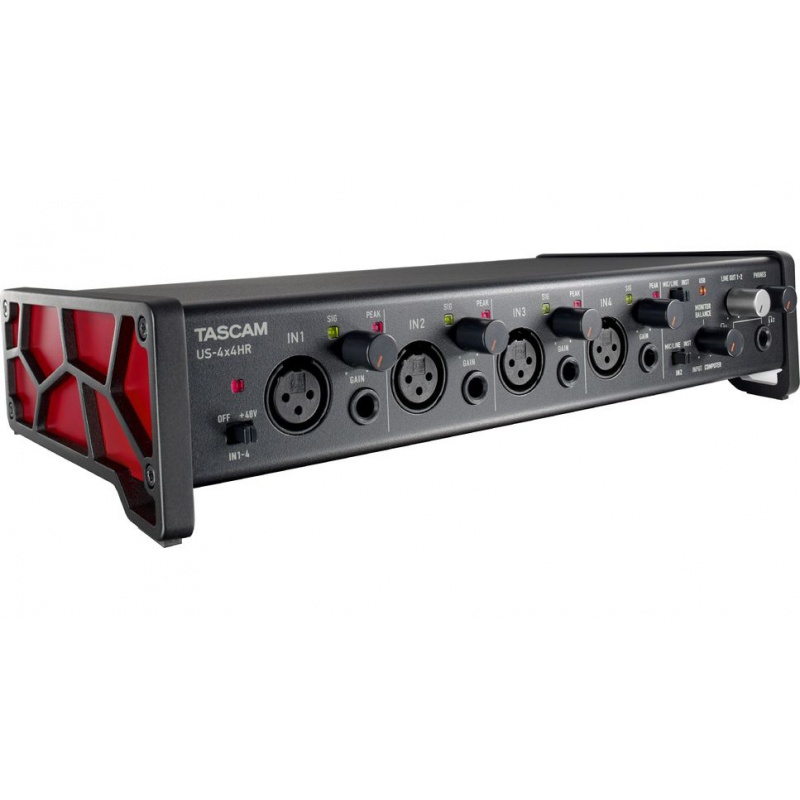

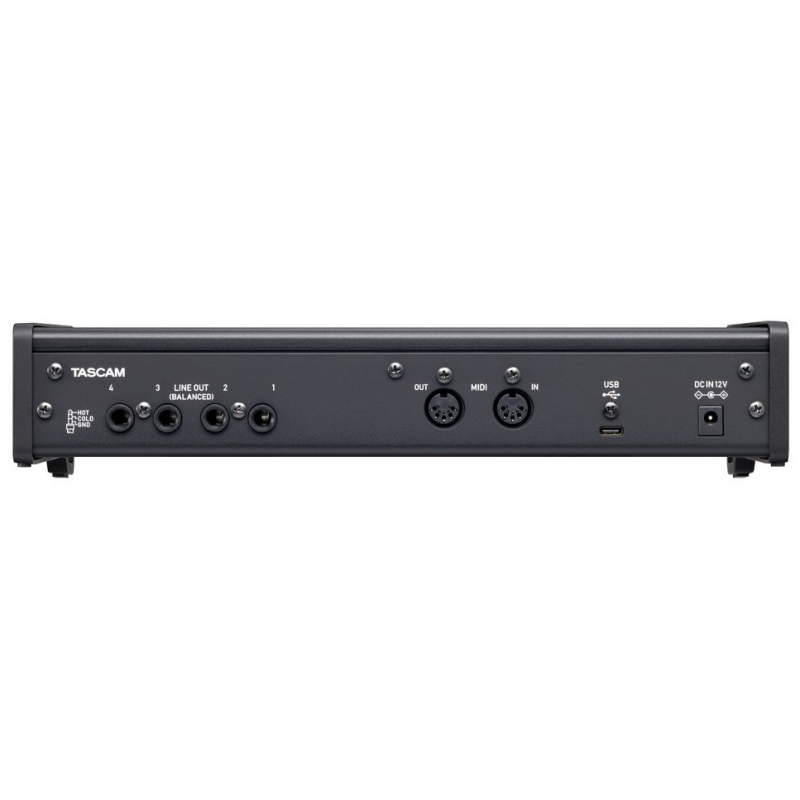

Tascam US-4x4HR Desktop 4x4 USB Type-C Audio/MIDI Interface
4 XLR mic inputs and 4 TRS line inputs (IN 1-2 guitar input support) audio interface with implemented MIDI IN/OUT ports. Equipped loopback function and OBS support makes this interface an excellent choice for podcasts and live streaming. The new US-4x4HR offers simple and intuitive operation, sophisticated looks, a rich assortment of software bundles, and improved audio performance with 192 kHz support, thanks to the newly enhanced audio circuit.
Features
- 4-in/4-out USB audio interface
- Supports up to 24-bit/ 192kHz audio formats
- Improved TASCAM driver with selectable buffer size from 4 samples provides low-latency and stability (Windows: TASCAM native driver)
- 4 XLR/TRS combo inputs equipped with Ultra-HDDA mic preamps and +48V phantom power
- Combo TRS line inputs with guitar input support on IN1-2
- TRS line outputs 1-2/3-4
- Two headphone outputs
- Equipped with MIDI IN/OUT terminals
- USB Type-C connection (USB Type-A to Type-C cable included)
- Powered by USB bus power
- * 48V phantom power requires PC power supply via USB-C connection.
- Zero-latency direct monitoring
- Compatible with iPad and other iOS devices
- Extensive line-up of bundled software
- Steinberg Cubase LE, Cubasis LE 3
- IK Multimedia Sample Tank 4 SE
- Antares AUTO-TUNE UNLIMITED (available free of charge up to 3 months)
- Stereo/mono selectable loopback function (Windows, Mac, iOS, iPad OS)
- OBS support
Included
- US-4x4HR
- AC adapter PS-P1220E
- USB cable (Type-A to Type-C)
- DAW software installation guide
- DAW plug-in software installation guide set
- Owner's manual
Computer System Requirements
Windows
Compatible computers
Windows computer with a USB 2.0 (or higher) port
CPU type/speed
2GHz or faster dual core processor (x86)
Memory
2GB or more
Driver
ASIO2.0, WDM, MIDI
Mac
Compatible computers
Mac with a USB 2.0 (or higher) port
CPU type/speed
2GHz or faster dual core processor
Memory
2GB or more
Driver
Core Audio, Core MIDI
iOS/iPadOS device
Driver
Core Audio
