Zoom U-24 Portable 2x4 USB Handy Audio/MIDI Interface
The U-24 is a compact, 2-in/4-out audio interface that provides all of the essential tools you need for recording and performing with high resolution, 24-bit/96 kHz audio—anywhere you go. Get incredible sound quality thanks to high-quality, low-noise preamps—the same ones found on our acclaimed H5 and H6 Handy Recorders. Connect to your PC, Mac, or iPhone/iPad via USB and record mics, instruments, and more. The U-24 delivers the same great sound as our U-44 interface, with a more streamlined feature set.
THE GO-EVERYWHERE INTERFACE

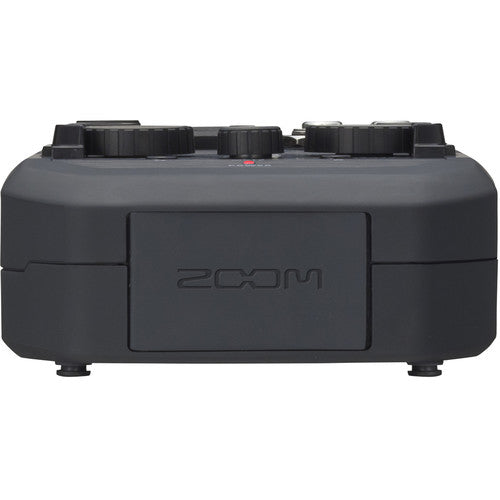

The bus-powered U-24 packs all the essential tools into a compact form factor that fits in the palm of your hand. Record with mics, instruments, and more at home or on the go—the U-24 is iPhone/iPad* compatible and small enough to take anywhere. It can even run on just two AA batteries for recording in the most remote locations.
* Requires 2 AA batteries or an optional AC adapter for power, plus an Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter for connection to iPhone/iPad.
PRISTINE RECORDING AND PLAYBACK
Inspired by our Zoom H-series recorders, the U-24 is equipped with high-performance, low-noise mic preamps (-119.5 dB EIN) that enable recording and playback at resolutions up to 24-bit/96 kHz. You can also use U-24 as a studio-quality headphone amp and listen to your favorite music in full fidelity
GET CONNECTED WITH THE U-24

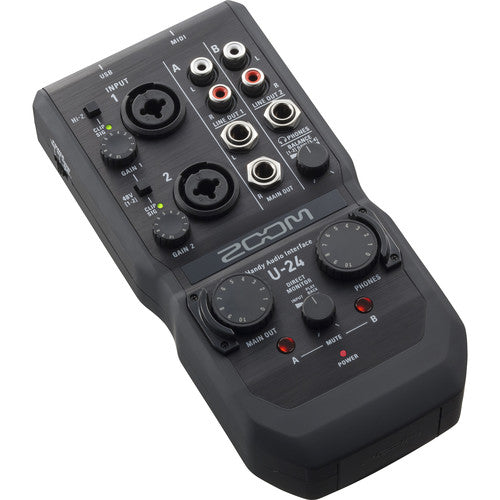

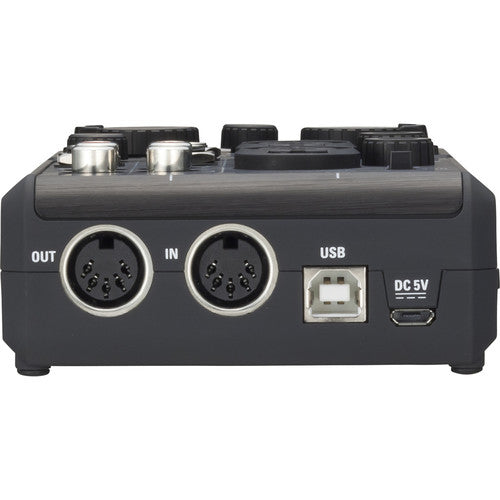

The U-24 is equipped with an essential collection of inputs and outputs for streamlined recording. Two combo inputs with independent gain knobs and multi-color level indicators allow you to connect mics, keyboards, mixers, and more. 48V phantom power can be supplied to both inputs, and input 1 supports Hi-Z for connecting guitars, basses, or other passive instruments. MIDI input and output jacks allow you to use devices like keyboards, controllers, synthesizers, and drum machines.
Separate TRS and RCA output jacks provide multiple options for connecting DJ mixers, monitors, and other gear. Finally, an independent headphone output with dedicated volume control gives you complete flexibility while monitoring.
YOUR MIX, YOUR WAY
The U-24 has flexible monitoring options for dialing in the perfect mix with zero latency. Balance the cue and main out signals when you’re DJ’ing, or create a mix of click track and main out signals during live performances. Each connector and knob is strategically positioned for fast access, so you can set up and control the U-24 with ease.
Specifications
Form Factor | Desktop |
Display | None |
Channels of I/O |
Analog: 2 Inputs / 4 Outputs |
Maximum Sampling Rate | 96 kHz / 24-Bit |
Number of Microphone Preamps | 2 Preamps |
Input Level Adjustment | 2 x Knob |
Expansion Slots | None |
Signal Processing
Pad | None |
Gain/Trim Range |
Inputs: 0 to 43 dB |
High-Pass Filter | None |
Solo/Mute | Mute per Master |
Connectivity
Analog Audio I/O |
1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line Input 2 x 1/4" TRS Balanced Monitor Output 2 x Stereo RCA Coaxial Unbalanced Line Output 1 x 1/4" TRS Unbalanced Headphone Output |
Phantom Power | 48 V, Selectable On/Off (Applied to All Inputs) |
Digital Audio I/O | None |
Host Connection / USB | 1 x USB-B (Class-Compliant) |
Host Connection Protocol | USB 2.0 |
USB (Non-Host) | 1 x Micro-USB (Power Input) |
Sync I/O | None |
Network I/O | None |
MIDI I/O |
1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
Wireless Connectivity | None |
Performance
Frequency Response |
System: 20 Hz to 20 kHz +0/-1 dB (at 44.1 kHz) 20 Hz to 40 kHz +0/-3.5 dB (at 96 kHz) |
Maximum Input Level |
Line Inputs: +20.7 dBu Mic Inputs: +2.7 dBu |
Maximum Output Level |
Monitor Outputs: +10 dBu at 0 dBFS Line Outputs: +8 dBu at 0 dBFS Headphone Outputs: +10 dBu at 0 dBFS |
Headphone Output Power | 30 mW per Channel into 32 Ohms |
Impedance |
Mic Inputs: 2.6 Kilohms Hi-Z Inputs: 1.1 Megohms Monitor Outputs: 1 Kilohm Line Outputs: 330 Ohms Headphone Outputs: 33 Ohms |
EIN |
Inputs: -119.5 dBA (150-Ohm Source) |
Digital Audio
Sample Rates | 44.1 / 48 / 88.2 / 96 kHz |
Sample Rate Conversion | None |
Bit Depths | 24-Bit |
Latency | Zero-Latency Direct Monitoring |
Sync Sources | Internal |
Audio Storage & Playback
Memory Card Slot | None |
Compatibility
OS Compatibility | macOS 10.9.5 or Later Windows 7 or Later (32/64-Bit) iOS 7.1 or Later *As of November 2021: Check with the manufacturer for the most up-to-date compatibility |
Included Software | Ableton Live Lite |
Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
Supported Drivers/API & Plug-Ins | macOS Class-Compliant (No Driver Needed) Windows Driver Downloadable from Manufacturer |
Processor Requirement | Intel Core i3 |
Mobile Device Compatibility | iPhone iPad |
Required Hardware | Available USB 2.0 Port or USB 3.0 / 3.1/3.2 Gen 1 Port USB Cable (Included) |
Internet Connection | Required for Registration, Software/Driver Download |

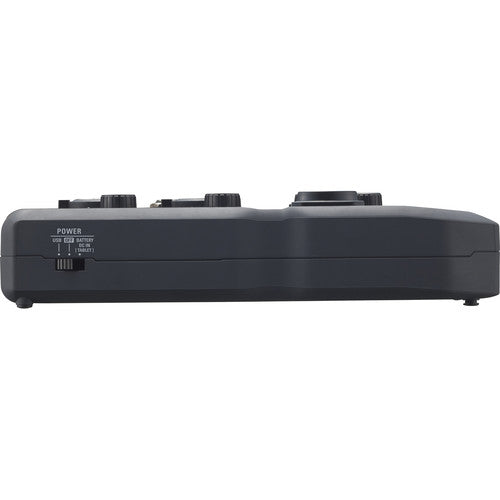

Power
Power Requirements | AC/DC Power Adapter (Not Included), Battery, or USB Bus Power |
AC/DC Power Adapter | 5 VDC (Not Included) |
Power Consumption | 5 W (Maximum) |
Battery Type | 2 x AA |
Approximate Battery Life | 4 Hours (Phantom Off) |
Physical
Dimensions | 7.55 x 3.63 x 1.68" / 19.18 x 9.23 x 4.27 cm |
Weight | 10.1 oz / 285.0 g |
Packaging Info
Package Weight | 1.35 lb |
Box Dimensions (LxWxH) | 9.291 x 6.772 x 2.284" |
